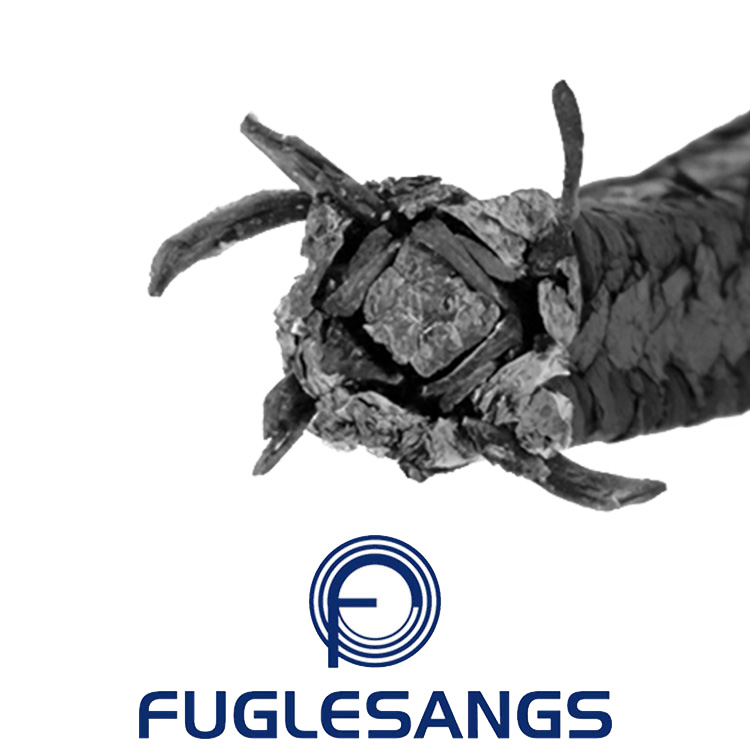

PTFE graphite packing

Do you have problems finding the right cost-efficient packing for your pump or valve? Then you should try this PTFE/graphite packing! With this packing you can increase the efficiency of your maintenance and reduce your inventory.

Not only can you reduce your inventory, this packing has an unlimited shelf life and that makes this a cost-efficient packing because you reduce your packing spoilage.

This is also chemical resistant and is designed to handle pH 0-14 in many chemical applications.

This PTFE/graphite yarn packing consist of a PTFE yarn that is lubricated with small particles of graphite, it is also added a special type of silicone oil that lubricates it even more. This chemical resistant yarn packing got an even lover coefficient of friction than 100% PTFE packing.

This PTFE/graphite packing transfers the heat generated form the pump shaft rotation, to the walls in the stuffing box very efficient. It can handle temperatures up to 260 °C (500°F) in rods and shafts in steam, bleach, acids, hot water, alkalies and solvents. That makes this yarn packing very chemical resistant.

This cost-efficient packing can also be used with black liquor and all other chemical applications for pumps, except these: fuming nitric acid, fluorine, oleum, aqua regia and some other strong oxidizing chemicals.

Yet this PTFE/graphite packing got 13% less thermal expansion than normal 100% PTFE packing, this equals less friction and lower heat when the shaft is at a higher speed. This cost-efficient packing will make any damage to the pump shafts that harder, more abrasive and harsher packings would.
