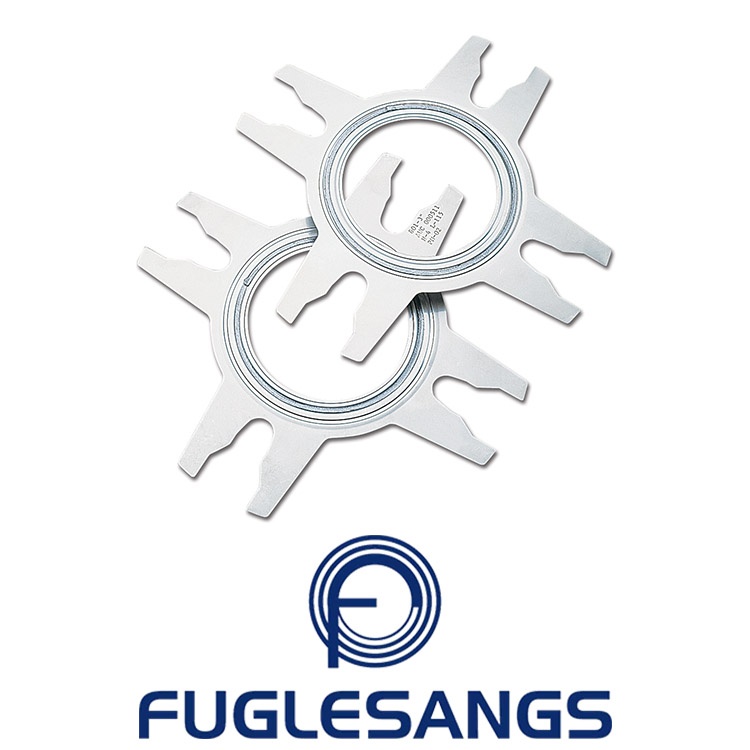

Metal gasket

Have you ever had the need for a metal gasket that can withstand extreme temperature with superior pressure handling and improved performance, then this is a perfect fit for you!

The design of this metal gasket trap pure graphite against the flange face. As it is tightened, the stainless steel is progressivly flattened, which in return traps the graphite and creates a sealing against the flanges. Inside the seal the graphite is protected against oxidizing atmosphere and corrosives which will provide an unamtched service life for this metal gasket.

The stainless gasket steel trap will easily pay for themselves over time due to reduced maintenance and downtime. With its self-locating design it will allow the same size metal gasket to be used in a huge range of flange pressure classes.

With this stainless gasket steel trap you can reduce your inventory and drastically reduce the chance of incorrect selection of gaskets. You will also be able to tailor the design of this metal gasket to fit any desired flange face. One of the biggest features for this metal gasket is to be an ideal replacemt for problem applications.

The metal gasket can handle temperature limits of 500°C (atmoshpere), 650°C (steam), 900°(inert media) and has a pressure limit of 6000 psi. It is extremely chemical resistant and will handle pH values between 0 - 14.

Together with all it's attributes this metal gasket can be costumized in different sizes and different materials if needed. Contact one of our experts to discuss this stainless gasket steel trap so we can offer the best solution for your applications.
