Rotary lobe pump

A rotary lobe pump is usually used in similar sludge pumping applications as progressive cavity pumps where there is limited footprint available. Lobe pumps are excellent pumps where low shear pumping of almost any medium is desired.

Our Tornado lobe pump range can pump capacities up to 1400m3hr and pressures up to 12bar. The Pumps have a good self suction ability and can run dry for short periods of time. Tornado rotary lobe pumps are available in several versions and materials and with rubber or metal lobes or full metal version in different stainless steel qualities.

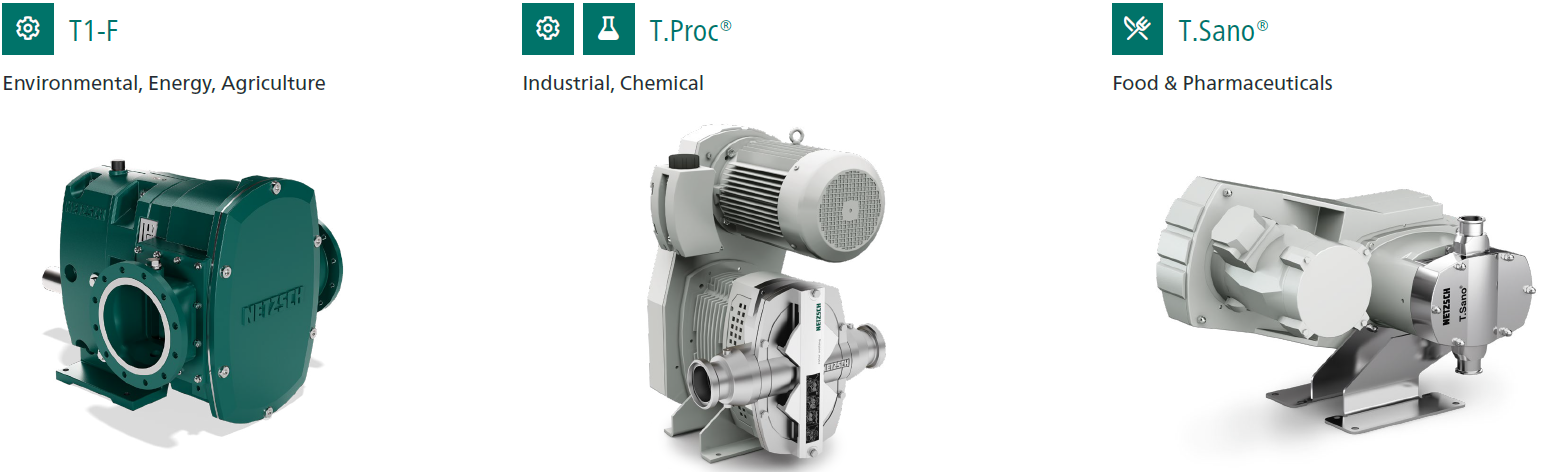

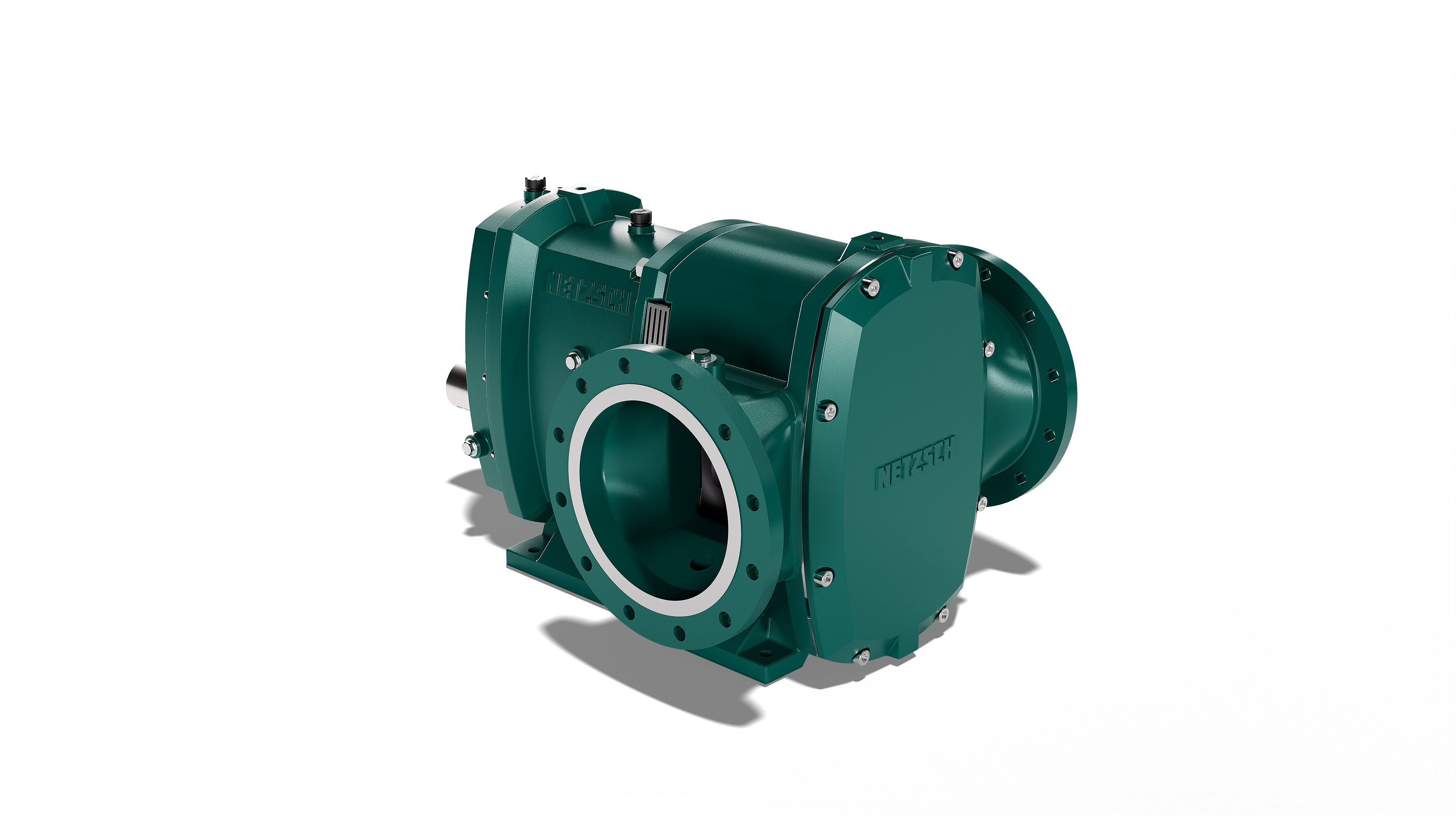

Tornado pumps have a very compact design. Tornado T1-F pump is a new design of lobe pump with gearbox with GSS (Gearbox Security System) for long term reliability. Tornado Tornado T.Proc® pumps is an innovative design avoiding gearbox due to timing gear rubber belt and motor assembly on top of the pump. Tornado T.Proc® is spesifically for Industrial and Chemical markets. T.Sano® pumps are oil and dead free designs in all metall for hygenic and food sector, EHEDG certified (depending on materials and flange size)

Tornado pumps can be delivered in full service in place feature (FSIP), which means that pump can be opened and completely refurbished without disconnecting of the pump from piping. Pump housing in different materials and easy to handle wear liners.

The mechanical seals can be delivered in different styles and materials, single or double, and with FSIP the seals can be removed from the pump still connected to the pipes.

Different types of lobe execution are available.
