Milton Roy Helisem
Compact Vertical Mixers
Main benefits
- Up to 70% energy savings
- Easy to install and maintain.
- Solid shafts give easy cleaning.
- Solid shafts reduce resistance and corrosion.
- Two models can rotate during emptying & filling.
DATA SHEET QUOTE
Product description
Milton Roy Helisem mixers are Compact, Powerful & Energy Efficient.
You can increase Process Efficiency by using the HELISEM® Mixer Series

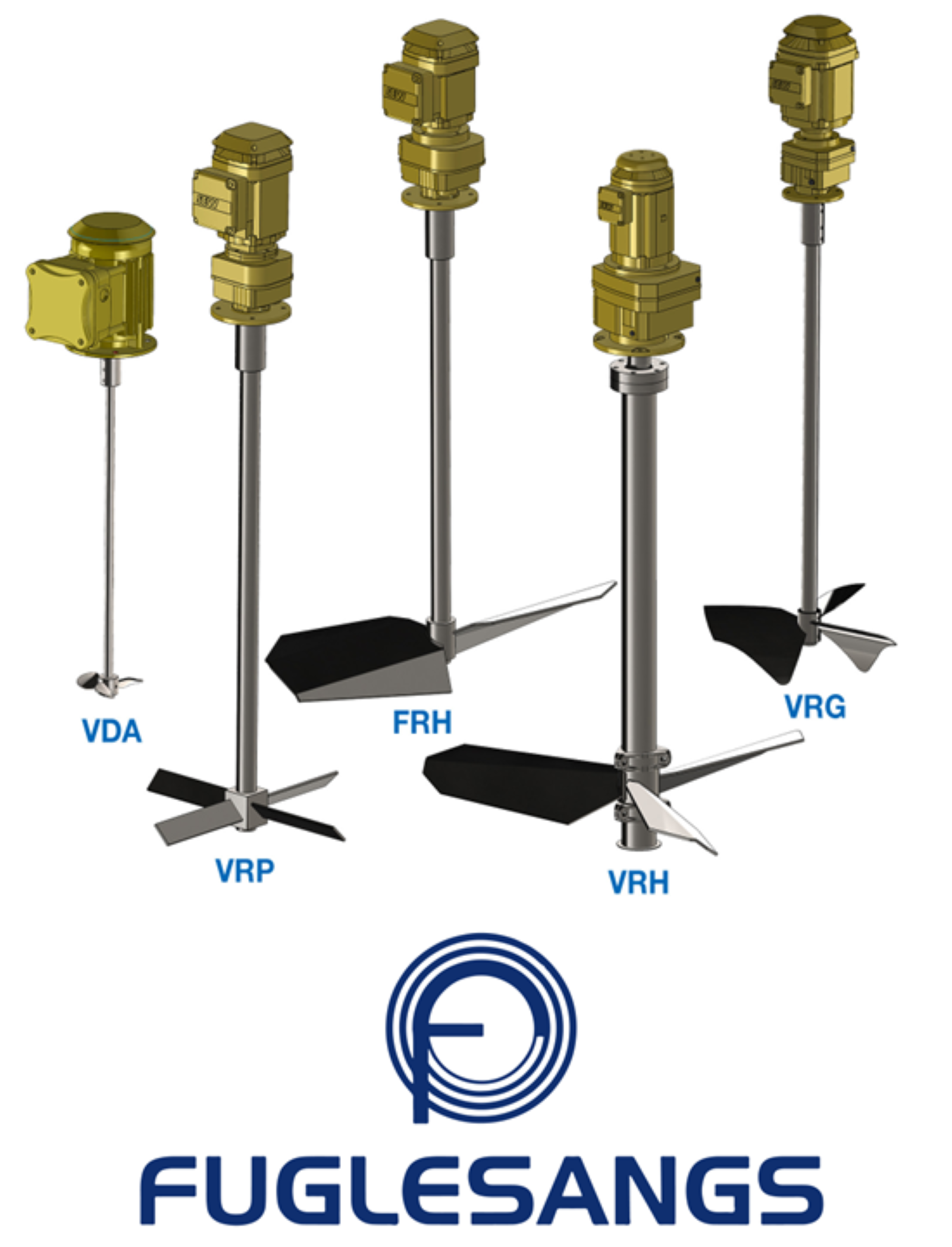

The HELISEM® Range offers 5 distinct series – VDA, VRP, VRH, VRG, and FRH – each with a specific impeller, to support a wide range of open tank applications from 10 Litre to 1,970 m3, and viscosities up to 1,000 mPas (cP) at 1.3 specific gravity.
The VDA model is a motor driven mixer available with a variety of marine propellers and mounting options.
The VRP model is a gearmotor driven mixer using a pitch blade turbine (PBT). An ideal mixer for a wide range of applications, the VRP offers mixing during emptying, filling or with a variable speed drive.
The FRH model is a gearmotor driven mixer equipped with the HP2 propeller with 2 blades. This model was specifically designed for flocculation in water treatment. The HP2 impeller generates good flow with the least shear possible, making it ideal for flocculation. It can be suitable for other applications as well that require low to medium mixing levels. FRH mixers can rotate during emptying, filling and can be equipped with a frequency inverter
The VRH model is a gearmotor driven mixer equipped with the HP1 propeller with 3 blades. This is a powerful mixer with an improved hydraulic efficiency to meet the demands of a wide range of applications. VRH mixers can rotate during emptying, filling and can be equipped with a frequency inverter
The new VRG model is a gearmotor driven mixer equipped with the 10SG SABRE propeller with 3 blades. This new model is recommended for high flow rate, viscous products, and sensitive products due to the wide blade that gives a high flow and allows low rotation speed.
Powerful and compact, the HELISEM® Series provides energy efficiency in a lightweight mixer with uncompromising results.
Applications
Because of it broad range, Helisem agitators are used in many industries including
Chemical Industry. Mixing and storage of chemical products
General Industry. Agitation of bitumen, painting, inks, additives, adhesives, textiles, lubricants
Oil and gas. Additives injection
Water treatment. Flocculation, neutralization, preparation and storage of reagents (lime milk, polymer, ferric chloride…)
Pharmaceuticals. Additives injection, dilution and storage for numerous applications
Food & Beverage. Additives injection, dilution and storage for numerous applications.
