Samiflex Bomab

Easy pump coupling


Main benefits

  • Designed and developed according to DIN740 standards
  • Quality in power transmission
  • Easy installation and minimal maintenance
  • Safe operation with no bolts or sharp edges
  • ATEX certification

DATA SHEET QUOTE


Product description


This is a high quality easy pump coupling for power transmission which is developed and designed according to DIN740 standards.

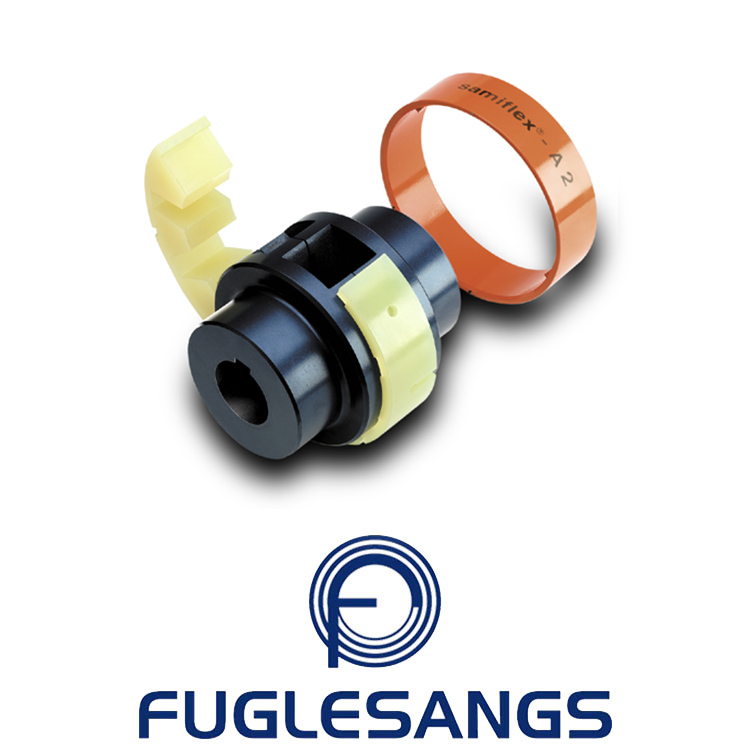

This easy pump coupling for power transmission comes in different designs which lets you use it within a wide area of equipment. This ATEX pump coupling for power transmission is delivered with two identical hubs, one split insert and one outer holding ring.

This ATEX pump coupling can also be supplied with spacers, taper-lock type TB and TBI, brake drum, flange and brake disc. The easy pump coupling for power tranmission can be delivered with elastic inserts in different shore hardness to fit the needs for your equipment. This ATEX pump coupling is very resistent to chemicals, corrosion, humidity and oil and can operate in temperatures between -40°C to 80°C.

After installation this elastic coupling for power transmission does not require any lubrication or service and is proven to run more then 70,000 hours with no signs of wear and tear. With this elastic coupling for power transmission you will have a safe operation since there are no bolts or sharp edges, it also runs completely silent at all speeds and loads. This easy pump coupling can be installed horizontally or vertically and is able to rotate in either direction.

With this easy pump coupling installed you will have minimal maintenance and downtime. The advantages of this easy pump coupling is that the assembly and disassembly is possible without needing to displace the equipment. With this the elastic insert can be inspected at any time and be replaced within a few minutes if necessary.

The hubs work independently of each other which allows for free-wheeling of the desired equipment. This possibility is great with certain applications as the equipment can be started with no load. Should there be any wear and tear in the elastic insert, due to the hubs that have no contact between them this gives this elastic coupling explosion proof properties.

Since this ATEX pump coupling is made of polyuerthane, the elastic coupling is also fireproof.

This easy pump coupling is designed for ease of alignemt. Since this elastic coupling is free of lubricants it makes it an enviromental friendly product. If you are interested in this product or need more information please contact one of our experts, they'll gladly help you!
